GelPal A100 Series
Mainstream nucleic-acid and protein gels — UV / Blue / White transmitted illumination switches freely, infrared gesture control lets you operate with gloves on. From sample to publication, the workflow stays effortless.
Technical Specifications
Key Parameters at a Glance
Applications
Best-fit experiments

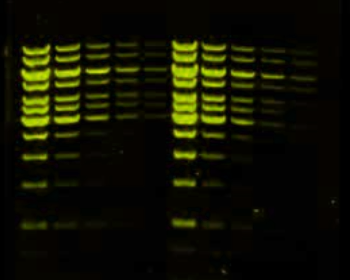

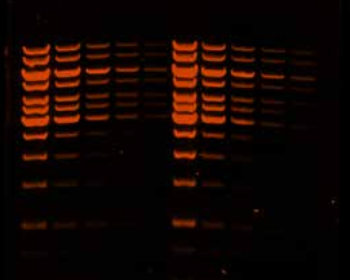

- DNA / RNA gels: EB · Gel Red · Gel Green · SYBR Green / Safe / Gold

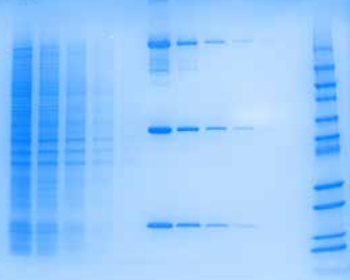

- Protein gels: Coomassie · silver stain · SYPRO Ruby · Oriole
- Membranes: stain-free · colorimetric · Ponceau S
- UV gel cutting with auto safety-shield detection
Core Features
Engineered for scientists, down to the detail.
Three-band transmitted light
UV 302 / Blue 470 / White — one tap to switch. Covers every mainstream nucleic-acid, protein and blot dye.
Smart gesture control
Open the drawer and trigger capture with gloves on — the workflow stays smooth.
16-bit scientific CMOS
71.7 dB dynamic range linearly records faint and bright bands together — no saturation, no loss.
Smart tray + UV safety
Auto-detects tray and light source; UV locks out when the shield is not in place.
Software
ZenImager OS
Embedded 10-inch touch — what you see is what you save
- Live preview + auto best-exposure suggestion
- WiFi network drive / mobile QR retrieval — no USB stick
- Auto band detection and basic quantitation
- TIFF 16-bit raw export, ImageJ compatible
What's in the Box
Standard accessories
- GelPal A100 main unit × 1
- UV safety shield × 1
- White transmission panel × 1
- Gel trays (large / small) × 2
- Power adapter + cord × 1
- USB / Ethernet × 1 each
- User manual + warranty card × 1
Warranty & Service
After-sales & technical support
FAQ
Common questions you may ask
Which nucleic-acid dyes does A100 support?+
EB, Gel Red, Gel Green, SYBR Green / Safe / Gold, Fast Blast, UView — every mainstream stain.
Can it run protein gels?+
Yes — Coomassie, silver stain, SYPRO Ruby, Oriole and Coomassie fluorescent orange all supported.
Do I need a separate PC?+
No. An Intel embedded platform and 10-inch touchscreen run the unit standalone; images move via WiFi.
Is gel cutting safe?+
Yes — the UV safety shield must be in place; if removed, UV automatically shuts down.
